G1 Tethered Power Supply System | ||
Category | Technical Specifications | |
Tethered Box | Input | 190--240VACWide input range, single-phase 220VAC, frequency 50/60Hz |
Output | 200--400VDC; Default factory setting: 380VDC | |
Power | Rated power: 1.5KW; Peak: 1.8KW | |
Dimensions | 361x271x212.5mm | |
Weight | 8Kg | |
Display | Touchscreen displaying voltage, current, power, temperature, cable status, working status, and other information | |
Cable | Standard: 18/33m; Custom cable length available upon request | |
Tether Cable | Diameter | 2.2mm |
Weight | 8.2g/m | |
Current | 2A | |
Electrical | Insulation strength ≥3000VDC, no breakdown for 1 min; Tensile strength: 30Kg; Repeated retraction cycles ≥1000 times | |
Material | Multi-strand silver-plated steel wire conductor, composite fluoroplastic insulation with high tensile strength, high-temperature Teflon insulation, Kevlar reinforced braided layer | |

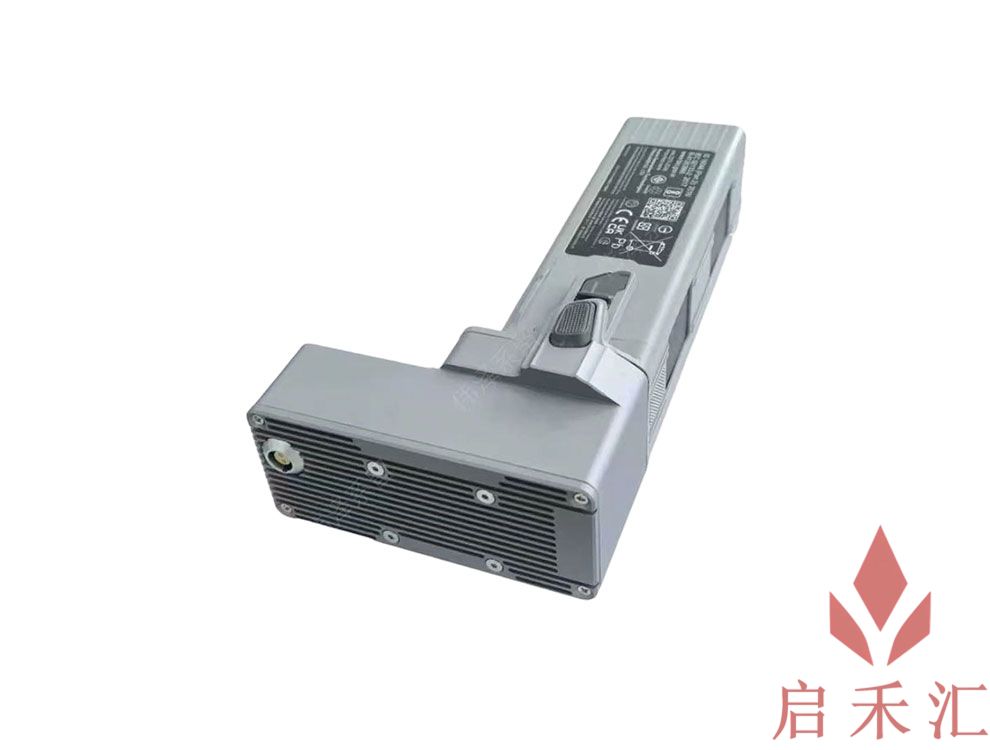

Onboard Power Supply | Input | 340--400VDC |
Output | 17.2/25.2VDC | |
Power | 600W | |
Dimensions | 92/52/29.5mm | |
Weight | 190g | |
Interface | External leads; Custom interface available upon request | |
Mounting | Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request | |
Takeoff Weight | 1--3Kg | |
