Category

Technical Specifications

Tethered Box

Input

190--240VAC Wide input range, single-phase 220VAC, frequency 50/60Hz

Output

200--750VDC; Default factory setting: 750VDC

Power

Rated power: 7KW; Peak: 8KW

Dimensions

450x371x212.5mm

Weight

16Kg

Display

Touchscreen displaying voltage, current, power, temperature, cable status, working status, and other information

Cable

Standard: 55/110m; Custom cable length available upon request

Tether Cable

Diameter

3.3mm

Weight

18g/m

Current

9A

Electrical

Insulation strength ≥3000VDC, no breakdown for 1 min; Tensile strength: 30Kg; Repeated retraction cycles ≥1000 times

Material

Multi-strand silver-plated steel wire conductor, composite fluoroplastic insulation with high tensile strength, high-temperature Teflon insulation, Kevlar reinforced braided layer

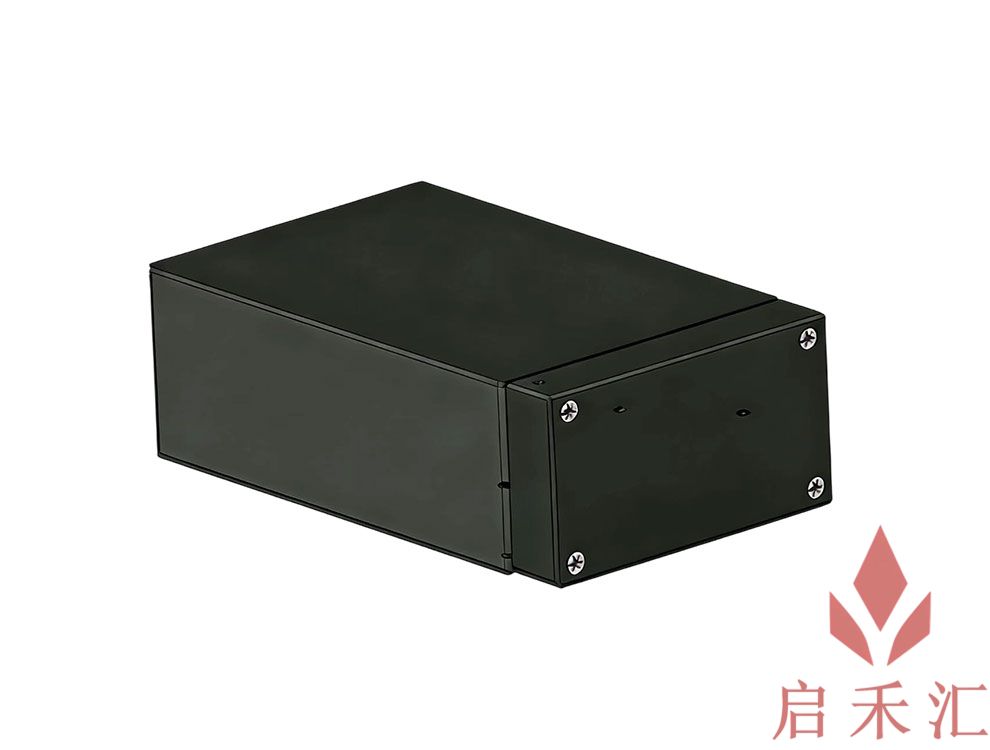

Onboard Power Supply

Input

800--1000VDC

Output

50/59VDC

Power

6KW

Dimensions

196/149/52.5mm

Weight

1.3Kg

Interface

External leads; Custom interface available upon request

Mounting

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Takeoff Weight

15--30Kg
