Category

Technical Specifications

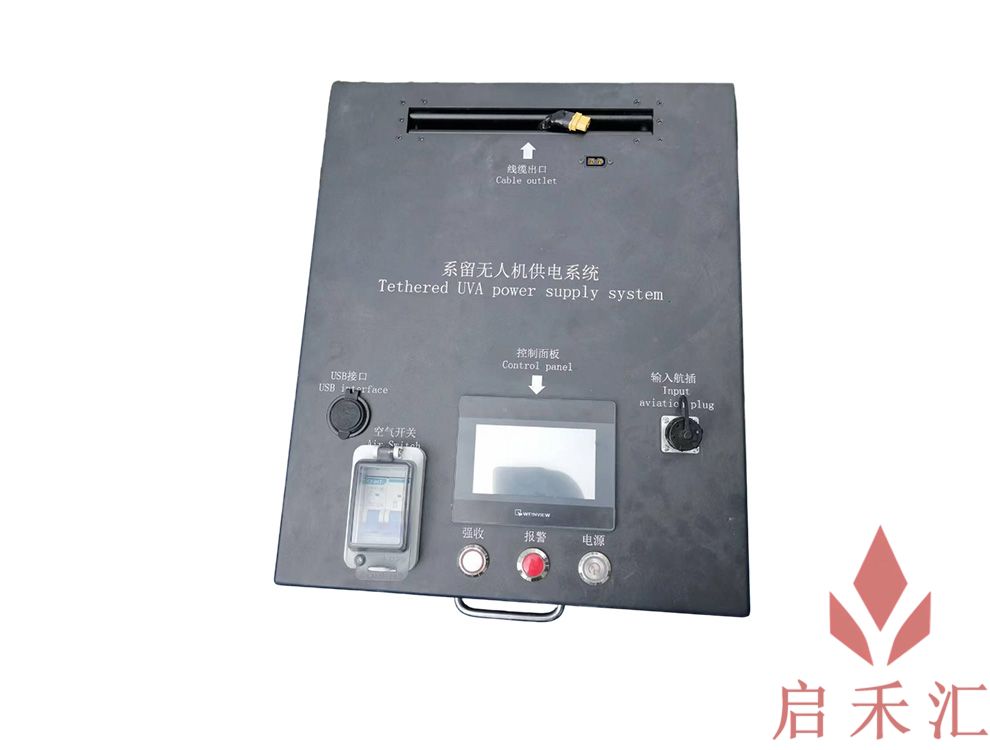

Tethered Box

Input

190--240VAC Wide input range, single-phase 220VAC, frequency 50/60Hz

Output

200--750VDC; Default factory setting: 750VDC

Power

Rated power: 3.5KW; Peak: 4KW

Dimensions

450x371x212.5mm

Weight

13Kg

Display

Touchscreen displaying voltage, current, power, temperature, cable status, working status, and other information

Cable

Standard: 55/110/160m; Custom cable length available upon request

Tether Cable

Diameter

2.5mm

Weight

11.2g/m

Current

5A

Electrical

Insulation strength ≥3000VDC, no breakdown for 1 min; Tensile strength: 30Kg; Repeated retraction cycles ≥1000 times

Material

Multi-strand silver-plated steel wire conductor, composite fluoroplastic insulation with high tensile strength, high-temperature Teflon insulation, Kevlar reinforced braided layer

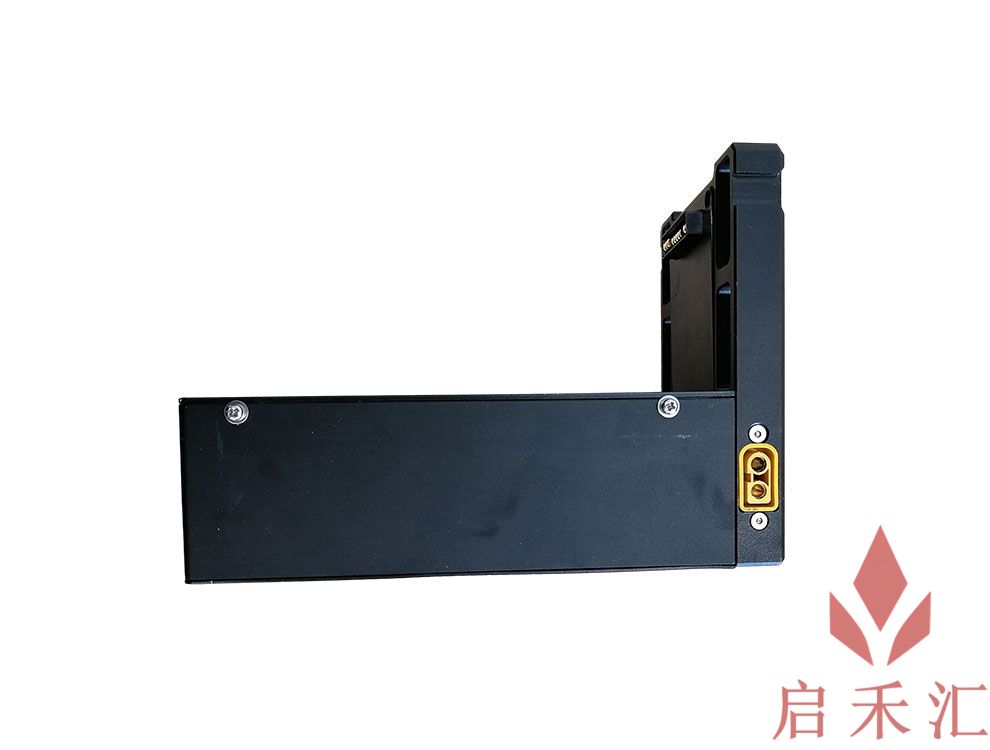

Onboard Power Supply

Input

600--810VDC

600--810VDC

Output

25.2/50VDC

25.2/50VDC

Power

2KW

3KW

Dimensions

92/52/29.5mm

145/92/47mm

Weight

460g

960g

Interface

External leads; Custom interface available upon request

External leads; Custom interface available upon request

Mounting

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Takeoff Weight

5--10Kg

10--15Kg
