Category

Technical Specifications

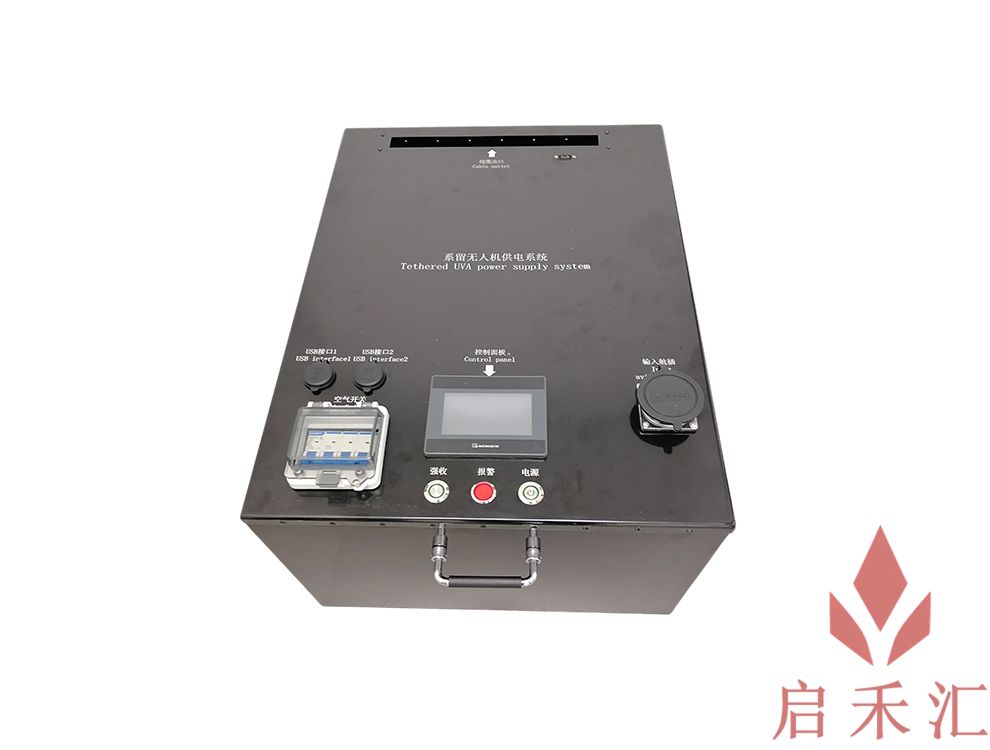

Tethered Box

Input

380VAC ±10% input, frequency 50Hz

Output

200--1000VDC; Default factory setting: 1000VDC

Power

Rated power: 20KW; Peak: 25KW

Dimensions

650/480/302mm

Weight

39Kg

Display

Touchscreen displaying voltage, current, power, temperature, cable status, working status, and other information

Cable

Standard: 110/220m; Custom cable length available upon request

Tether Cable

Diameter

5.3mm

Weight

32g/m

Current

20A

Electrical

Insulation strength ≥3000VDC, no breakdown for 1 min; Tensile strength: 30Kg; Repeated retraction cycles ≥1000 times

Material

Multi-strand silver-plated steel wire conductor, composite fluoroplastic insulation with high tensile strength, high-temperature Teflon insulation, Kevlar reinforced braided layer

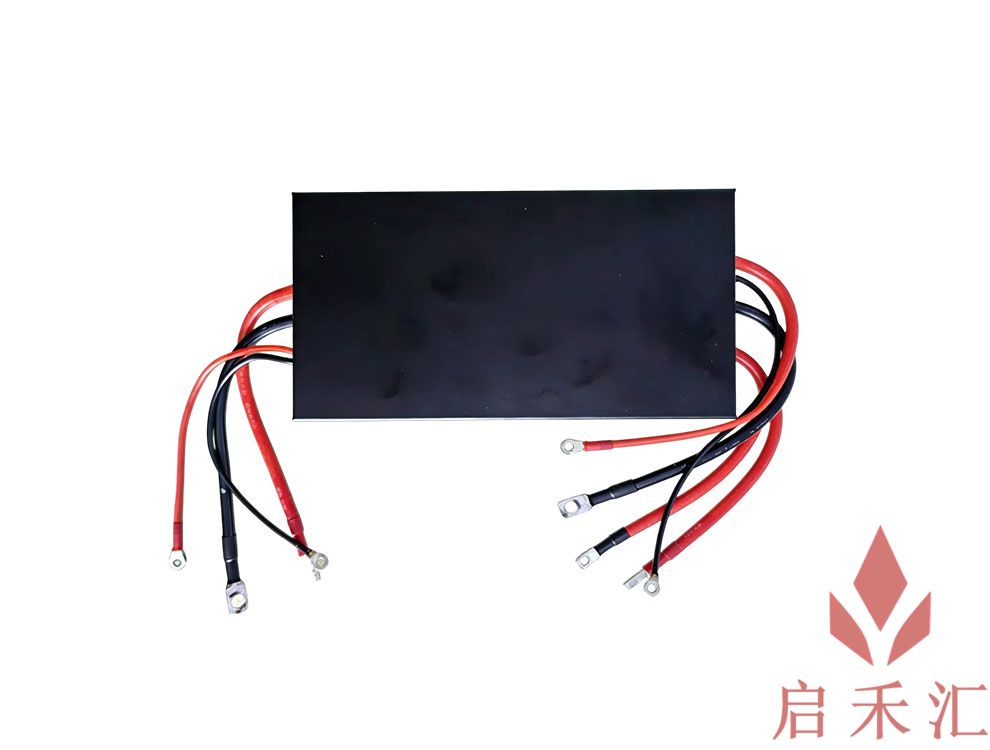

Onboard Power Supply

Input

800--1000VDC

Output

50/59VDC

Power

18KW

Dimensions

388/295/54.5mm

Weight

3.9Kg

Interface

External leads; Custom interface available upon request

Mounting

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Takeoff Weight

60--90Kg
