Category

Technical Specifications

Tethered Box

Input

380VAC ±10% input, frequency 50Hz

Output

200--1000VDC; Default factory setting: 1000VDC

Power

Rated power: 40KW; Peak: 50KW

Dimensions

690/506/302mm

Weight

56Kg

Display

Touchscreen displaying voltage, current, power, temperature, cable status, working status, and other information

Cable

Standard: 110/220m; Custom cable length available upon request

Tether Cable

Diameter

6.8mm

Weight

50g/m

Current

36A

Electrical

Insulation strength ≥3000VDC, no breakdown for 1 min; Tensile strength: 30Kg; Repeated retraction cycles ≥1000 times

Material

Multi-strand silver-plated steel wire conductor, composite fluoroplastic insulation with high tensile strength, high-temperature Teflon insulation, Kevlar reinforced braided layer

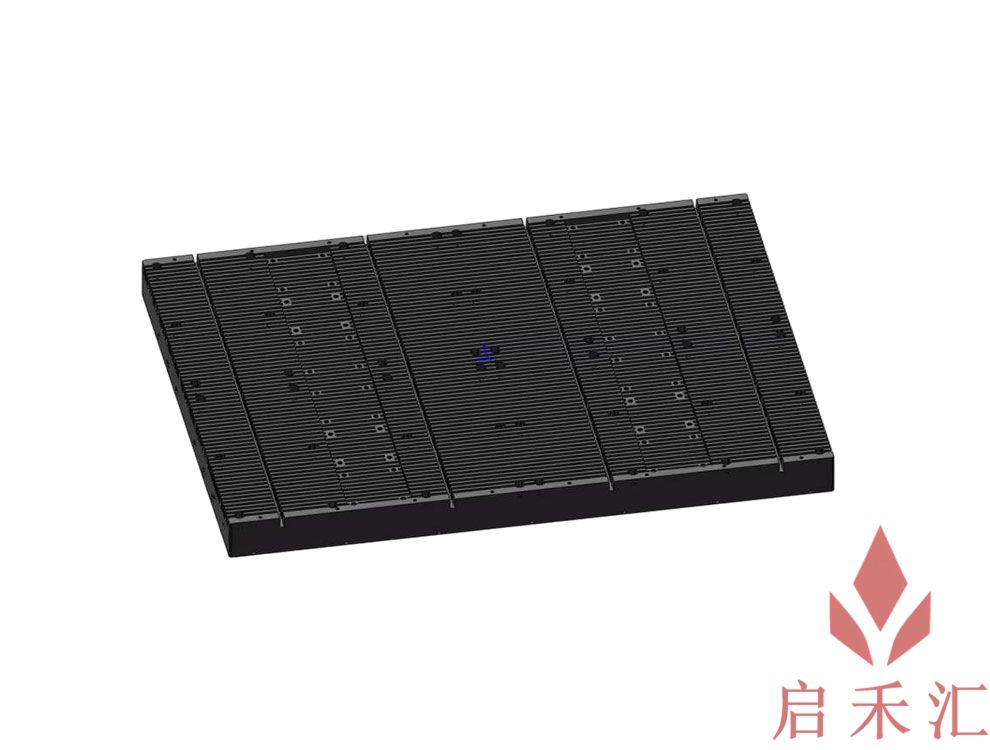

Onboard Power Supply

Input

800--1000VDC

800--1000VDC

Output

50/59/76VDC (12S/14S/18S)

50/59/76VDC (12S/14S/18S)

Power

30KW

36KW

Dimensions

436/394/61mm

436/394/61mm

Weight

8.1Kg

9.2Kg

Interface

External leads; Custom interface available upon request

External leads; Custom interface available upon request

Mounting

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Pre-drilled M3 threaded holes for mounting; Custom mounting options available upon request

Takeoff Weight

130--165Kg

165--200Kg
